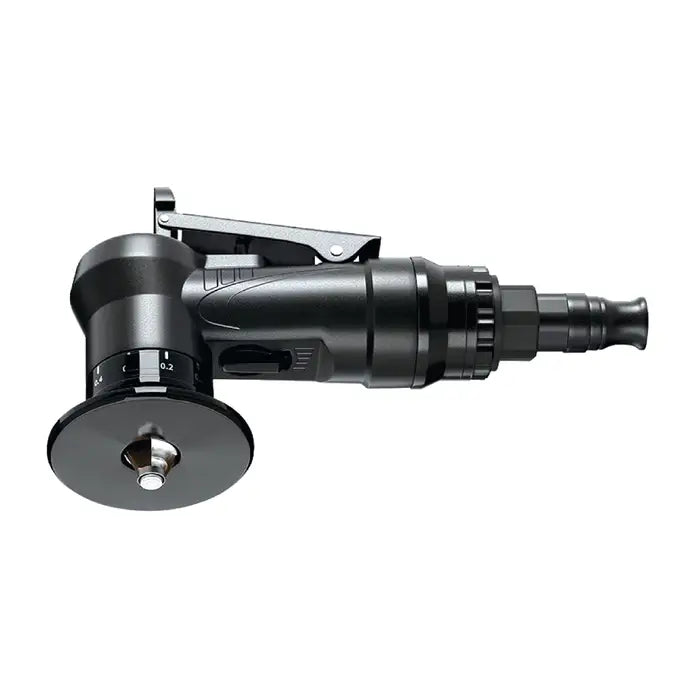

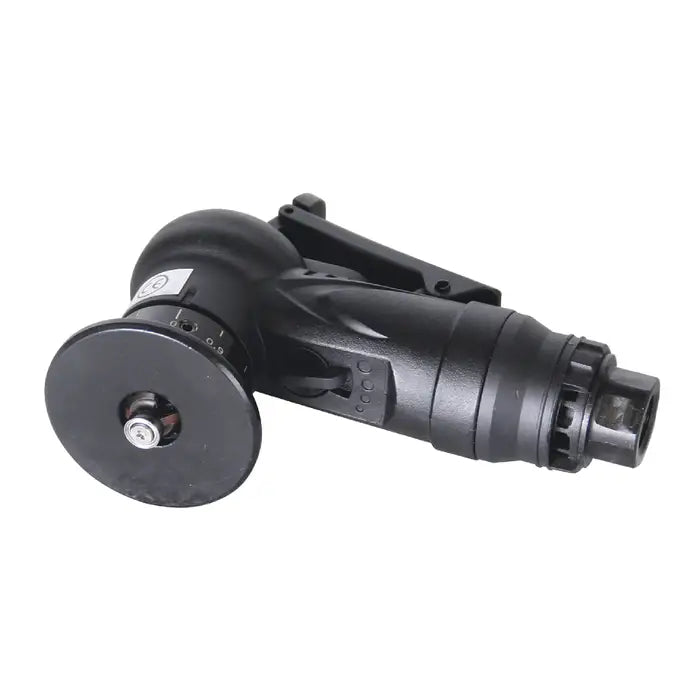

TTC Pneumatic Chamfering Tool
$32.50
Skip to product information
TTC Pneumatic Chamfering Tool
$32.50
SKU
85-100-700
Lightweight, compact, and easy to operate with an air compressor
Benefits
- Chamfer edges quickly and efficiently.
- Lightweight, compact, and easy to operate where compressed air is available.
- Create consistent chamfers on your workpieces.
Applications
- Chamfers and deburs workpieces with minimal setup.
- Works on wood, plastic, aluminum and other non-ferrous metals, mild steel and stainless steel.
Features
- Safety switch.
- Speed control.
- Bearing to prevent over-cutting.
- Adjustable chamfer depth.
- Creates edge using (2) carbide inserts that each have three cutting surfaces.
- Chamfer capacity: 0.1-2.4mm (0.004-0.094")
- 1/4"-18 NPS (National Pipe Straight) air inlet.
Includes
- (2) Replaceable carbide inserts.
- (1) Replacement bearing.
- Hex key for adjustment.
- Torx key to replace inserts.
| PRODUCT SPECIFICATIONS |
|
| Brand | TTC |
| Model # | MR-A100 |
| Air Consumption | 0.4m2 |
| Air Inlet Size | 1/4" NPS |
| Air Pressure | 90 PSI |
| No-Load Speed | 30,000 RPM |
| Chamfer Capacity | 0.1-2.4mm (0.004-0.094") |
| Grit | 90/100 rough |
| Insert Screw | Order #24-285-929 |
| Prop. 65 | Yes |
| Replacement Insert | Order #85-100-701 |
| Weight | 0.97 lbs. |
