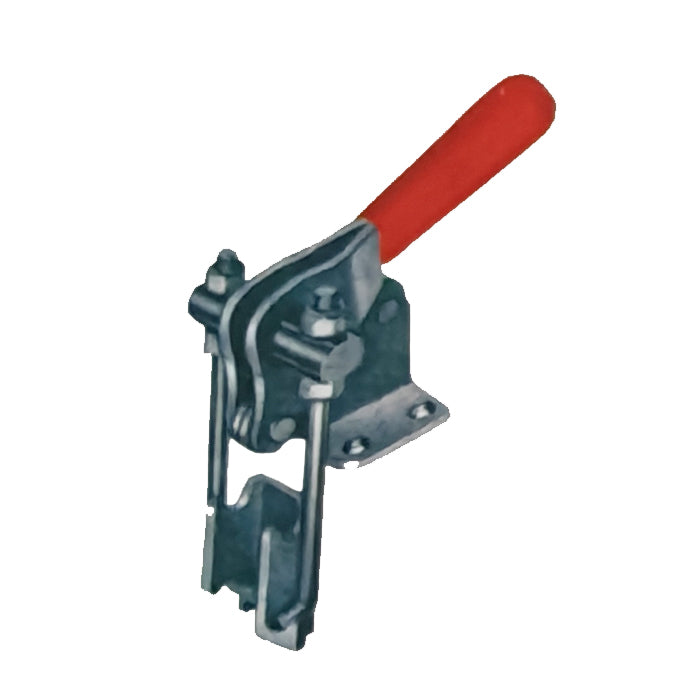

40334 450KG Holding Capacity Toggle
$2.20
Skip to product information
40334 450KG Holding Capacity Toggle
$2.20
SKU
40334
| MODEL | HOLIDNG CAPACITY | WEIGHT |
| 40334 | 450KG | 250G |

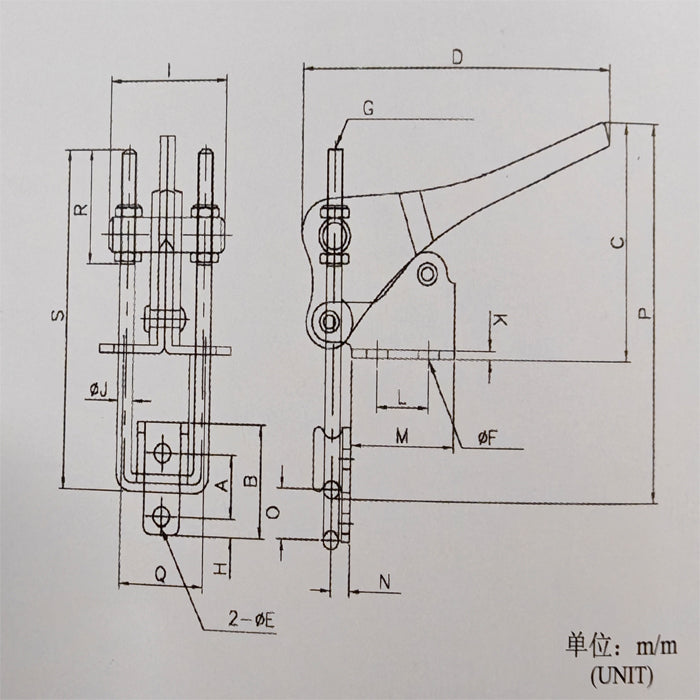

| A | B | C | D | ΦE | ΦF | G | H | I | ΦJ | K | L | M | N | O | P | Q | R | S |
| 20.6 | 38.1 | 61.9 | 120 | 7.1 | 7.1 | M16 P=1 | 7.1 | 41.3 | 6.35 | 3 | 19.1 | 33.3 | 8.7 | 17.5 | 102 | 25.4 | 40.5 | 114 |
