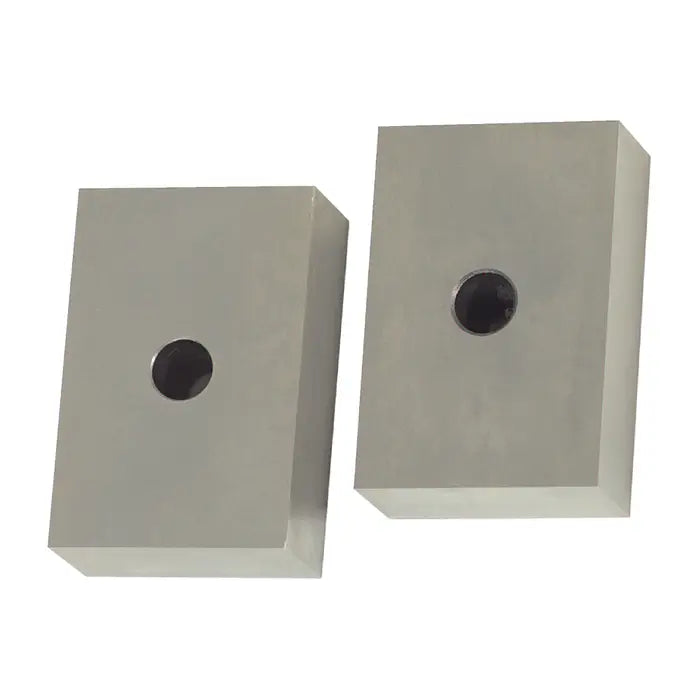

TTC PG-123-1H 1-2-3 Block Set - 1 Hole, 1 Hole Setup Block
$7.80
Skip to product information
TTC PG-123-1H 1-2-3 Block Set - 1 Hole, 1 Hole Setup Block
$7.80
SKU
57-020-417

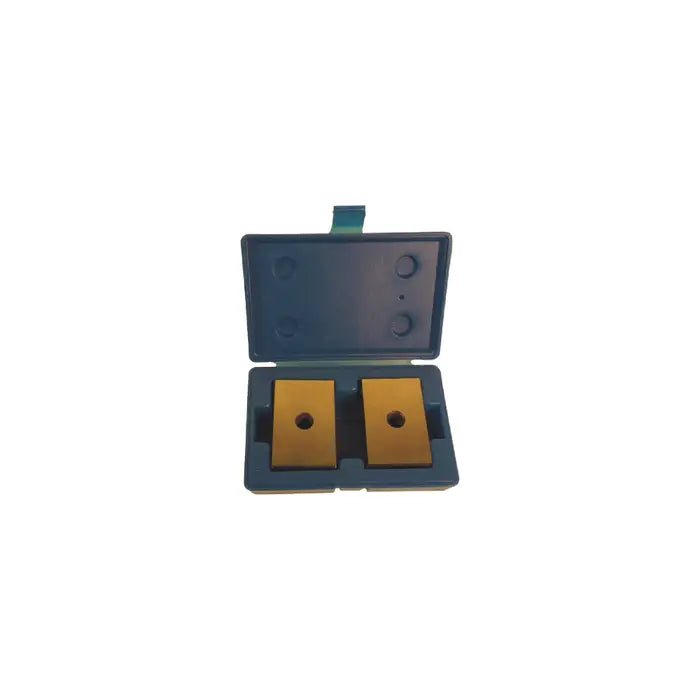

Provided in a molded plastic case
Applications
- Ideal for precision grinding, layouts and set-up work.
Features
- Matched accuracy: ±.0001"
- Squareness: .0001" per inch
- Parallelism: .0001"
- Blocks hardened to HRc 56 - 62.
- Hole dimension: 1/2" through hole
| PRODUCT SPECIFICATIONS | |
| Brand | TTC |
| Model # | PG-123-1H |
| Dimensions | 1" x 2" x 3" |
| Type | 1-2-3 Block Set - 1 Hole |
| Width | 2" |
| No. of Holes | 1 |
| Angle Accuracy | ±.0001" |
| Hardness | Rc:56-62 |
| Height | 1" |
| Length | 3" |
| Prop. 65 | Yes |
| Vise Parallelism | .0001" |
| Vise Squareness | .0001" |
| Weight | 3.5 lbs. |
