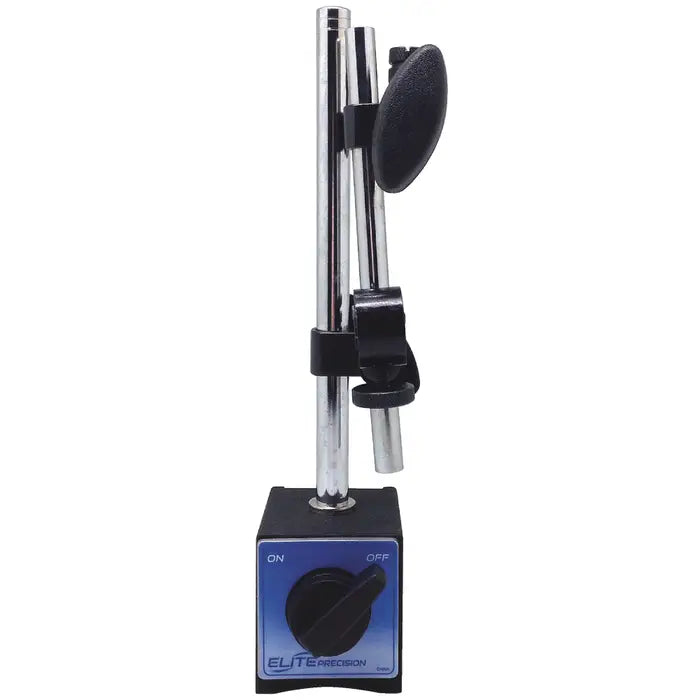

ELITE PRECISION EMB-BV Articulating Magnetic Indicator Holder, Holds: 5/32" & 8mm, In-Line Adjustment
$14.20
Skip to product information
ELITE PRECISION EMB-BV Articulating Magnetic Indicator Holder, Holds: 5/32" & 8mm, In-Line Adjustment
$14.20
SKU
57-030-725
180 lbs. of holding power
Features
- Back & bottom rails are surface ground square and parallel to within .001".
- Base can be mounted vertically as well as horizontally.
- V-bottom base allows mounting on cylindrical surfaces.
- Stem holes are 5/32" and 8mm; lug stem is .225" (5.71mm).
- Post height: 6.93"
- Arm length: 5.91"
| PRODUCT SPECIFICATIONS | |
| Brand | ELITE PRECISION |
| Model # | EMB-BV |
| Bottom Arm Length | 6.93" |
| Top Arm Length | 5.91" |
| Holds Stem Diameter | 5/32" & 8mm |
| Holding Power | 180 lbs. |
| Fine Adjustment | In-Line |
| Type | Post & Arm |
| Arm Length | 5.9" (150mm) |
| Base Height | 2.17" (55mm) |
| Base Dimensions | 2.28" x 1.97" x 2.17" |
| Arm Length Inch | 5.9" |
| Auto Power | On/off switch |
| Base Length | 2.28" (58mm) |
| Base Width | 1.97" (50mm) |
| Lug Stem | .225" (5.71mm) |
| Magnetic Base Height | 2.17" (55mm) |
| Magnetic Base Length | 2.28" (58mm) |
| Magnetic Base Width | 1.97" (50mm) |
| Post Height | 6.93" |
| Prop. 65 | Yes |
| Total Arm Length | 5.9" (150mm) |
| Weight | 3.25 lbs. |
