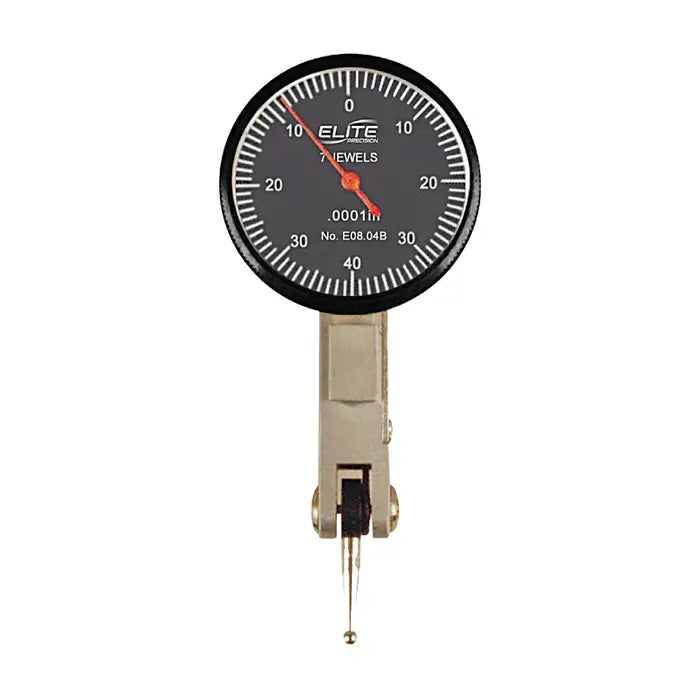

ELITE PRECISION E08.04B 0 - 0.018" Range, 0-40-0 Reading Dial Test Indicator

Applications

• The steel/carbide contact points are engineered to be used with Elite Precision dial test indicators.
• If you choose to buy the dial test indicator sets from Elite Precision, then you get a set of three steel contact points free.

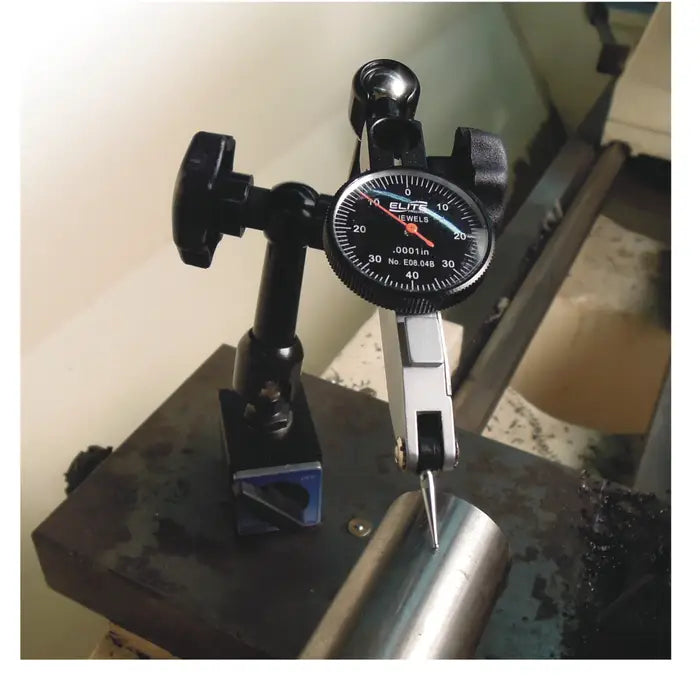

• You can make use of these precision-certified indicator sets, together with the steel/carbide contact points, in production environments and for testing part alignments.

Features

• Elite Precision ESP.040, ESP.080, ECP.080, and ESP.120 contact points have a ball tip and a point length of 0.515 inch.
• The varying ball-end diameters of these models are 0.040 inch, 0.080 inch, and 0.120 inch, and they come with a 2mm thread.
• The ECP.080 model is a carbide contact point, and the rest three models are steel contact points.
• The contact points are designed to be used with the dial test indicator models E30.15B, E30.15W, and E08.04B.

Includes

(3) FREE Steel Contact points: .040". .080" and .120". (2) Dovetail extensions: 5/32" & 3/8". (1) Point wrench. (1) Durable molded case.

PRODUCT SPECIFICATIONS
Brand	ELITE PRECISION
Model #	E08.04B
Type	Horizontal Set with 3 Points, 2 Dovetail Extensions & 1 Wrench
Accuracy	0.00015"
Contact Point Diameter	.080"
Dial Color	Black
Dial Diameter	1.25"
Dial Reading	0-40-0
Graduation	.0001"
Includes	(3) FREE Steel Contact points: .040". .080" and .120". (2) Dovetail extensions: 5/32" & 3/8". (1) Point wrench. (1) Durable molded case.
Measuring Range	0 - 0.018"
Point Length	0.515"
Prop. 65	Yes
Travel	.018"
Type of Reading	Inch
Weight	0.81 lbs.
